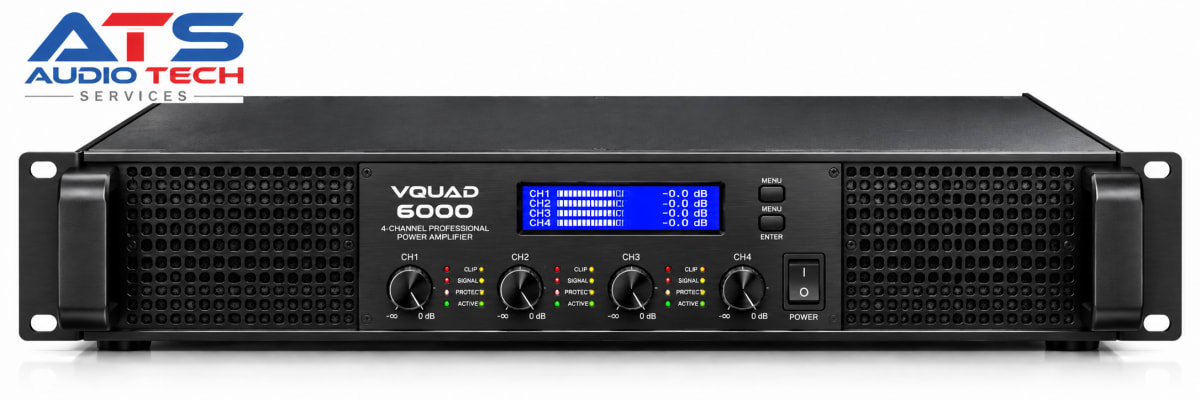

VQUAD 6000 4-Channel Professional Power Amplifier

Name: VQUAD 6000 4-Channel Professional Power Amplifier
Brand: ATS
SKU: ATS-VQUAD-6000

The ATS VQUAD 6000 is a professional 4-channel power amplifier designed for cinema, professional audio, installation and high-performance sound applications. It delivers 4 × 1200 W at 4Ω and 4 × 1000 W at 8Ω, with bridge operation providing up to 2 × 2400 W at 4Ω and 2 × 2000 W at 8Ω. The amplifier features Class H topology, a high damping factor and reliable professional-grade construction for demanding sound reinforcement applications.

Request Quote

Specifications

4-Channel Analog Power Amplifier

4Ω Rated Power – 4 × 1200 W

8Ω Rated Power – 4 × 1000 W

4Ω Bridge Power – 2 × 2400 W

8Ω Bridge Power – 2 × 2000 W

Digital Display – Channel & Amplifier Status Monitoring

4 Independent Channel Gain Controls

Professional High-Power Analog Output Stage

S/N Ratio – ≥99 dB

Damping Factor – ≥700

Frequency Response – 20 Hz–20 kHz

Amplifier Class – Class H

Net Weight – 26.5 kg

Complete 1-Year Warranty
