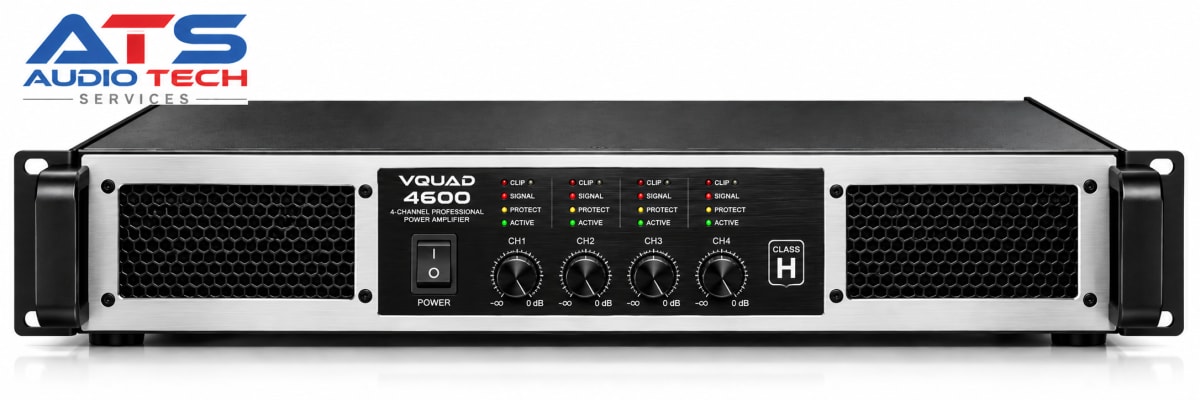

VQUAD 4600 4-Channel Professional Power Amplifier

Name: VQUAD 4600 4-Channel Professional Power Amplifier
Brand: ATS
SKU: ATS-VQUAD-4600

The ATS VQUAD 4600 is a professional 4-channel analog power amplifier designed for cinema, professional audio, installation and high-performance sound applications. It delivers 4 × 1200 W at 4Ω and 4 × 800 W at 8Ω, with bridge operation providing up to 2 × 2000 W at 4Ω and 2 × 1000 W at 8Ω. The amplifier features Class H topology, independent channel controls and professional-grade construction for reliable performance in demanding sound systems.

Request Quote

Specifications

4-Channel Professional Analog Power Amplifier

4Ω Rated Power – 4 × 1200 W

8Ω Rated Power – 4 × 800 W

4Ω Bridge Power – 2 × 2000 W

8Ω Bridge Power – 2 × 1000 W

4 Independent Channel Controls

Professional Analog Output Stage

S/N Ratio – ≥100 dB

Damping Factor – ≥600

Frequency Response – 20 Hz–20 kHz

Amplifier Class – Class H

Net Weight – 25 kg

Complete 1-Year Warranty
