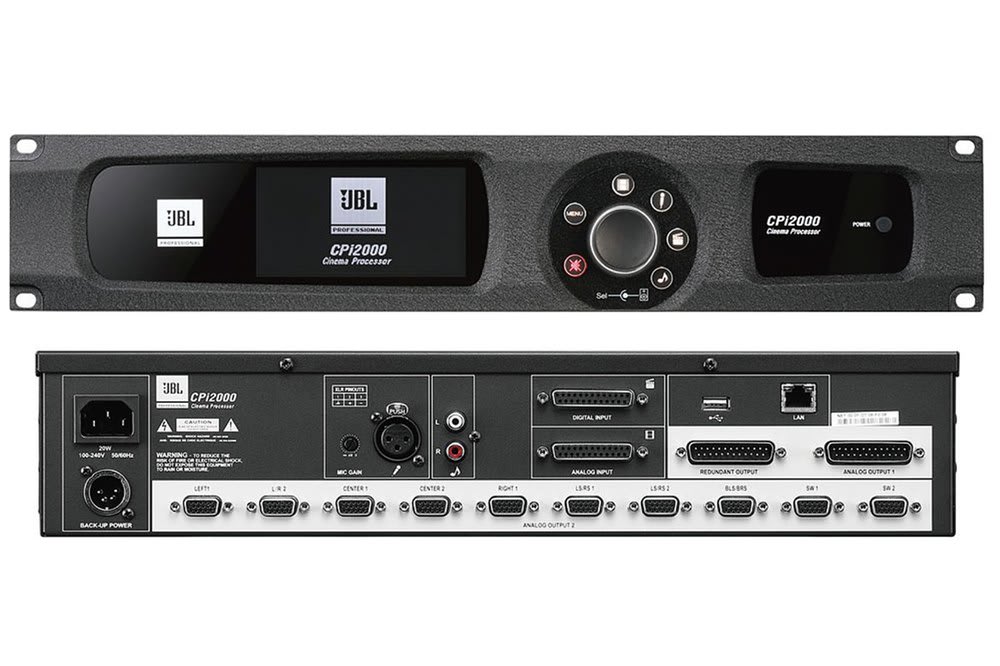

JBL CPi2000 Cinema Processor

Name: JBL CPi2000 Cinema Processor
Brand: JBL Professional
SKU: JBL-CPI2000

The JBL CPi2000 is a professional cinema processor designed for 5.1 and 7.1 surround sound systems. It provides DSP processing, system EQ, built-in crossover, loudspeaker management and JBL cinema speaker presets for efficient cinema sound system setup and tuning. The CPi2000 includes a 1/3 octave GEQ for room tuning with an RTA microphone, integrated GUI software, front-panel LCD display and network-based system monitoring through TMS. Its built-in fault detection system can automatically route audio to the redundant output in the event of a system failure. The processor supports passive, bi-amp and tri-amp loudspeaker configurations and is suitable for professional cinema audio installations.

Request Quote

Specifications

System Support: 5.1 and 7.1 cinema surround sound systems

Crossover: Built-in crossover supporting passive, bi-amp and tri-amp configurations

System EQ: 27-band GEQ and 3-band PEQ for system tuning

Microphone Input: XLR input for RTA microphone calibration and voice broadcasting

Digital Input: Female HD-25 balanced, 110 Ohms, 0.5–10 Vpp input level

Analog Input: Female HD-25 balanced/unbalanced, 50K Ohms balanced or 25K Ohms unbalanced

Music / Non-Sync Input: RCA, 25K Ohms impedance, +14.2 dBu maximum input level

Analog Outputs: Support for passive, bi-amp and tri-amp cinema speaker configurations up to 7.1 channels

Redundant Output: Automatic audio routing to redundant output during system failure

Frequency Response: 20 Hz – 20 kHz, Ref. 1 kHz, ±1 dB

THD + N: <0.01%, 20 Hz – 20 kHz

Dynamic Range: >102 dB

Control & Monitoring: GUI software, front-panel LCD display and RJ45 TMS communication

Connectivity: USB configuration file import/export and LAN connection for GUI control and firmware updates

Power Input: 100–240 VAC, 50–60 Hz; +12 VDC, 2 A DC backup input

Rack Space: 2U

Dimensions: 18.98 × 3.46 × 9.09 in (482 × 88 × 231 mm)

Net Weight: 8.82 lb (4.0 kg)
