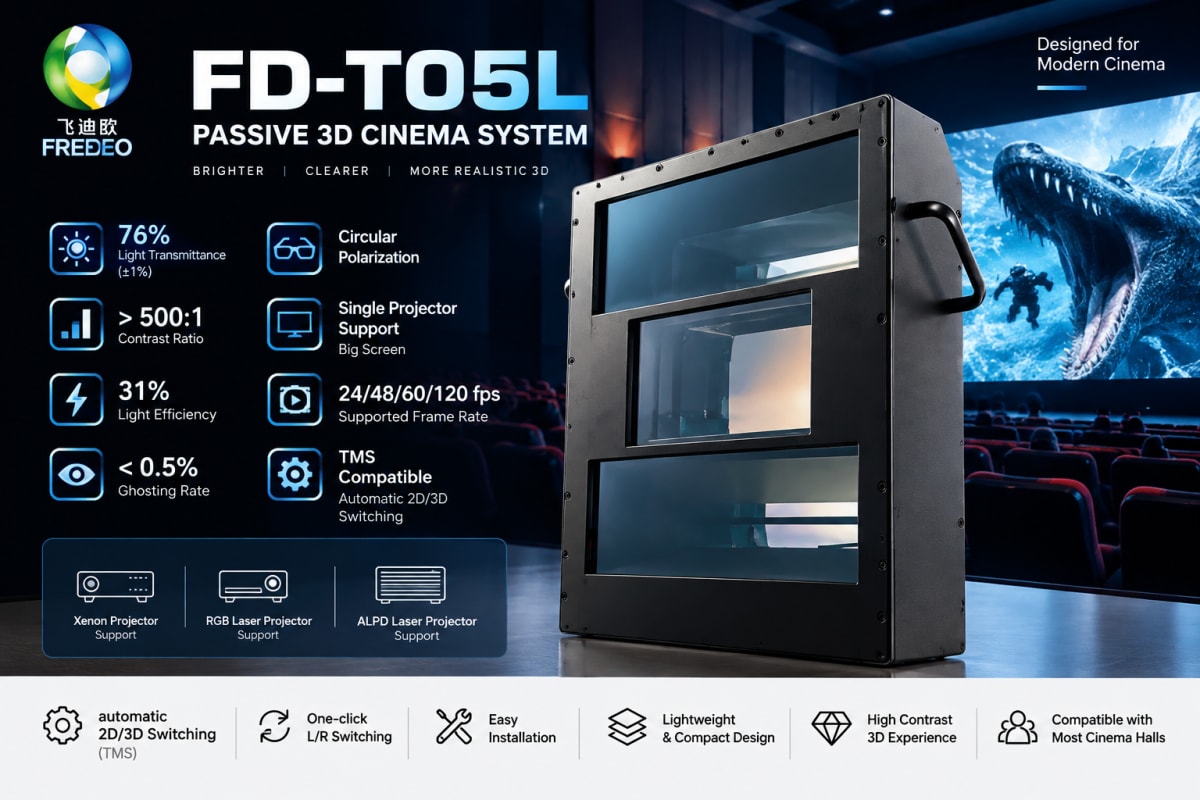

FREEDO FD-T05L Passive 3D Cinema System

Name: FREEDO FD-T05L Passive 3D Cinema System
Brand: FREEDO
SKU: FREEDO-FD-T05L

FREEDO FD-T05L is a professional passive 3D cinema system designed for high-quality large-screen cinema projection. It uses circular polarization technology to deliver bright, clear and immersive 3D images with excellent image separation. With up to 76% light transmittance, 31% light efficiency and a contrast ratio above 500:1, the FD-T05L is designed to maximize projector light utilization while maintaining a high-quality 3D viewing experience. The system supports 24/48/60/120 fps and provides intelligent 2D/3D switching through TMS. It is compatible with Xenon lamp, RGB Laser and ALPD Laser projectors and is suitable for cinema installations with a throw ratio of 1.20:1 and above.7FREEDO FD-T05L Passive 3D Cinema System

Request Quote

Specifications

Circular Polarization Technology

Light Transmittance: 76% ±1

Light Efficiency: 31%

Contrast Ratio: >500:1

Ghosting Rate: <0.5%

Supported Frame Rate: 24 / 48 / 60 / 120 fps

2D/3D Intelligent Switching: Available (TMS)

One-Click Left/Right Picture Transposition: Available

Gain: >2.4

Polarization Contrast: >150:1

RGB Laser Projector Support: Available

ALPD Laser Projector Support: Available

Throw Ratio: 1.20:1 and Above

Projection Distance: 8–32 m

Projection Window Requirement: 500 × 500 mm

Polarizer Dimensions: 345 × 110 × 336 mm

Application: Professional Cinema 3D Projection
