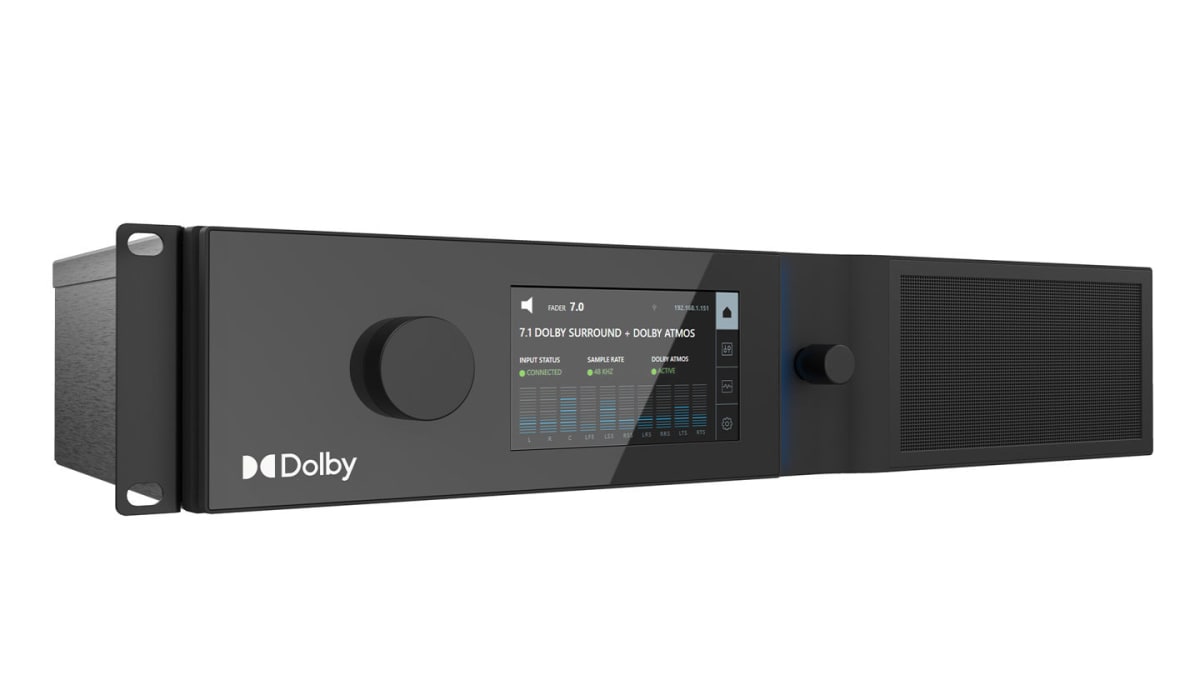

Dolby Atmos Cinema Processor CP950A

Name: Dolby Atmos Cinema Processor CP950A
Brand: DOLBY
SKU: DOLBY-CP950A

The Dolby Atmos Cinema Processor CP950A is a fully featured cinema audio processor designed to deliver an immersive Dolby Atmos sound experience. It supports Dolby Atmos playback and rendering for up to 64 speaker feeds, with high-resolution multi-rate EQ, internal crossovers and flexible audio processing. The CP950A features a built-in booth monitor, intuitive touchscreen front-panel interface and web-based remote control. Its modular design allows field upgradeability and serviceability, making it suitable for modern cinema sound installations and professional audio environments. The processor supports Dolby Atmos, Dolby Surround 7.1 and 5.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD and other supported cinema audio formats.

Request Quote

Specifications

Dolby Atmos Processing: Supports Dolby Atmos playback and rendering up to 64 speaker feeds

Audio Processing: High-resolution multi-rate EQ and internal crossover support up to 4-way loudspeakers

Digital Outputs: AES67 / BLU Link support for up to 64 digital output feeds

Audio Formats: Dolby Atmos, Dolby Surround 7.1 & 5.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD and Dolby E

Inputs: Gigabit Ethernet, HDMI, AES-3, AES67, Microphone/RTA, Analog and Dolby Atmos Connect

Analog Outputs: 2 × 8-channel analog outputs via DB25

Control: Touchscreen front panel, web-based user interface, Ethernet/Serial control and SNMP monitoring

Connectivity: 1 × GB Ethernet for control, 1 × GB Ethernet for Dolby Atmos input and 1 × USB 3.0

Unit Dimensions: 19" W × 3.5" H × 8.7" D including rack ears

Power: 100–240 VAC, 50–60 Hz; Nominal consumption <85 W

Operating Temperature: 0°C to 40°C

Operating Humidity: 20% to 80% non-condensing

Complete 3-Years Warranty
