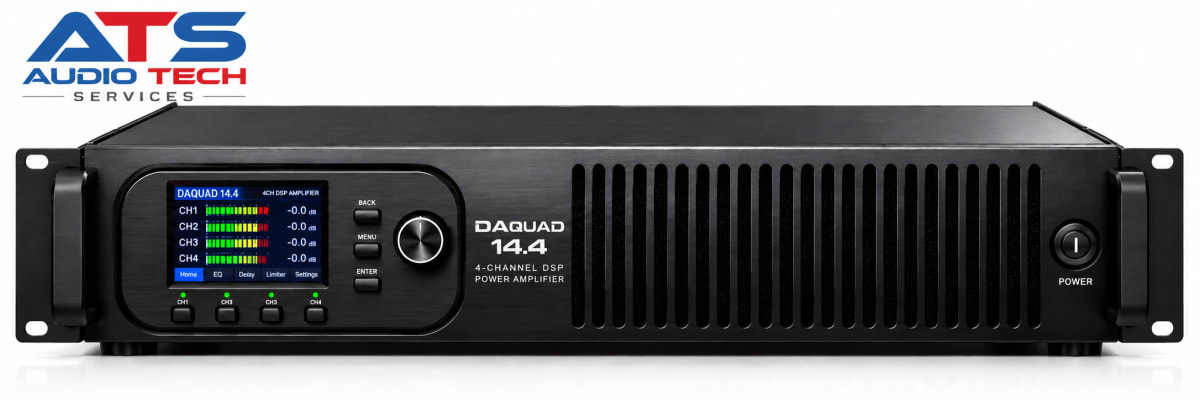

DAQUAD 14.4 DSP 4-Channel Power Amplifier

Name: DAQUAD 14.4 DSP 4-Channel Power Amplifier
Brand: ATS
SKU: ATS-DAQUAD-14.4

The ATS DAQUAD 14.4 is a professional 4-channel DSP power amplifier designed for cinema, professional audio, studio and installation applications. It delivers up to 4 × 1800 W of power at 4Ω and 4 × 1400 W at 8Ω. Each channel can be configured independently for wattage and impedance according to the system requirements. The built-in DSP provides advanced control including 15-band input and output EQ, HPF/LPF, input and output delay, compressor, limiter, phase and mute functions, along with 512-tap FIR processing. With Class D amplification, ≥100 dB S/N ratio and ≥600 damping factor, the DAQUAD 14.4 is designed for precise and reliable professional audio performance.

Request Quote

Specifications

4-Channel DSP Power Amplifier

Output Power – 4 × 1800 W @ 4Ω

Output Power – 4 × 1400 W @ 8Ω

Independent Wattage & Impedance Configuration per Channel

DSP – 15 Band EQ, HPF/LPF, Delay, Compressor & Limiter

FIR Processing – 512 Tap

S/N Ratio – ≥100 dB

Damping Factor – ≥600

Frequency Response – 20 Hz–20 kHz

Amplifier Class – Class D

Net Weight – 11 kg

Complete 1-Year Warranty
